Description

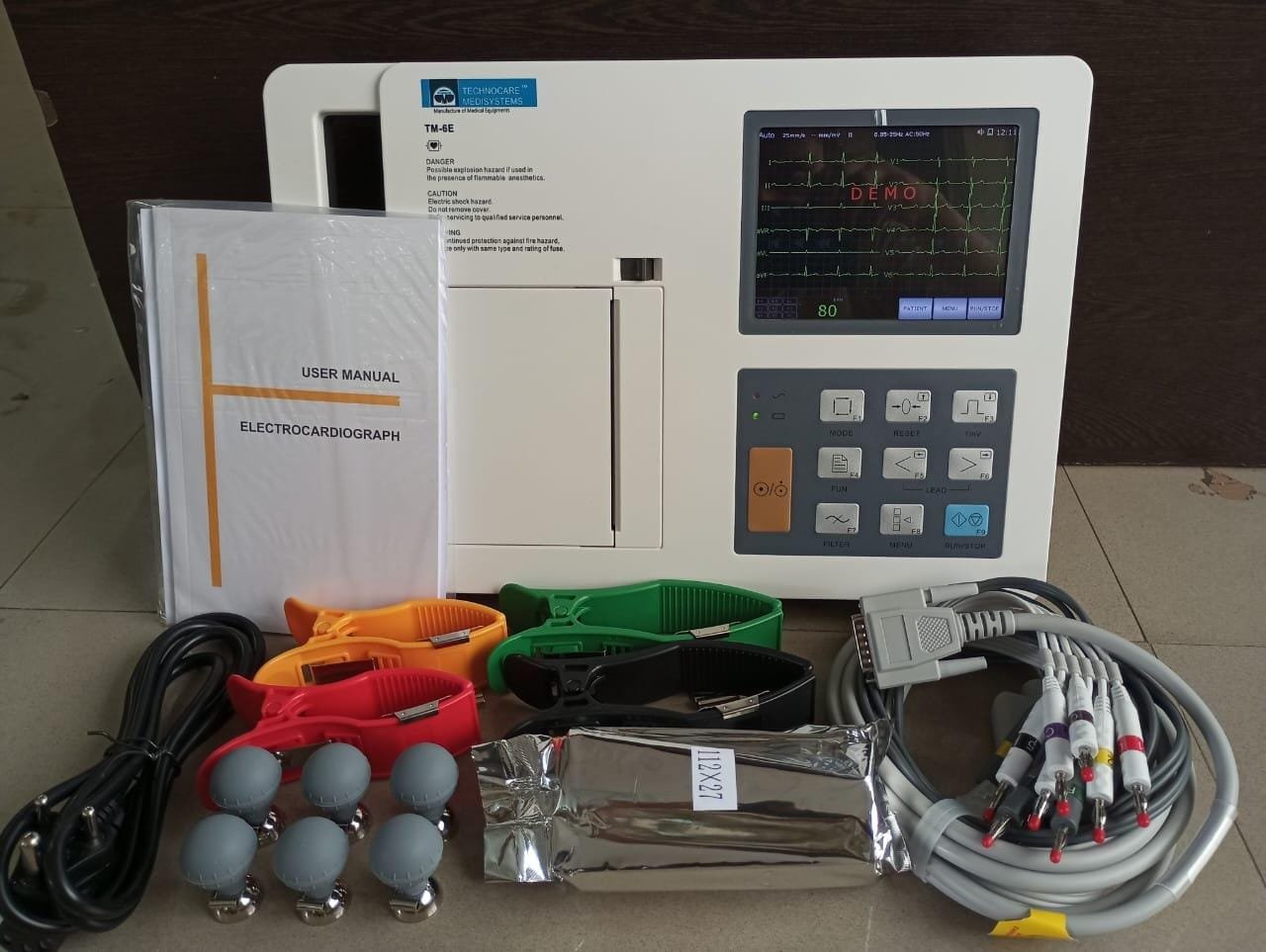

Technocare Medisystems TM-6E Digital 6-Channel ECG Machine complete with its user manual, power cord, limb clamps, chest suction electrodes, thermal paper, and patient lead cables.
This is a portable digital 6-channel electrocardiograph designed for resting ECG diagnostics in clinics and hospitals.
It features a color touchscreen LCD display, built-in thermal printer, and simultaneous 12-lead acquisition capabilities.
- 5.8″ LVD, touch screen, led backlight
- Digital isolation technology and signal processing solution, digital filter
- Patient management, name and age and id.
- Detail analysis report.
- Multi-language options: Germany, France, Italian, Turkey, etc
- Built-in lithium rechargeable battery, wide thermal printing system
- USB and LAN socket.
- Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
- Auto-measurement, auto-analysis and auto-interpretation.
Specifications:
- Lead: Standard 12 leads
- Patient leak current: <10uA
- Input impedance:>=50M
- Frequency response:0.05 — 150HZ(-3dB)
- Time constant:>3.2S
- CMRR:>100dB
- Dimension of recording paper:80mmx20m
- Paper speed: 25mm/s, 50mm/s
- Sensitivity choice:5, 10, 20mm/mV.
- Measurement parameters:HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc,P Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
- Product safety type: Class I, CF. De-fibrillation and Pacing Protection
- Enduring polarization voltage: ± 300mv
- Noise level:<15uVp-p
- Dimension: 130mm(L)x 74mm (W) x 25mm(H)
- Net wight: 2.3KG
